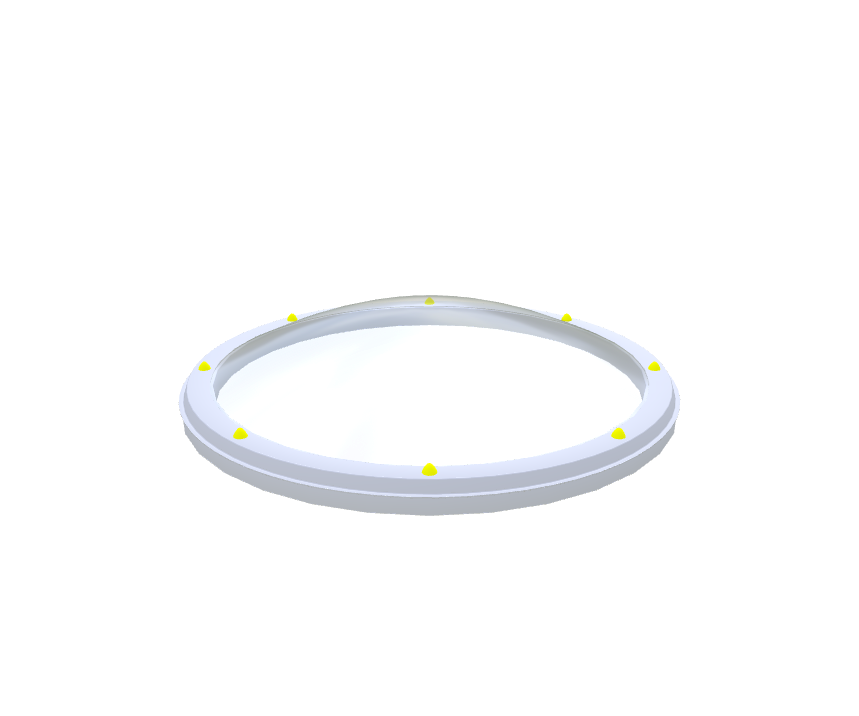

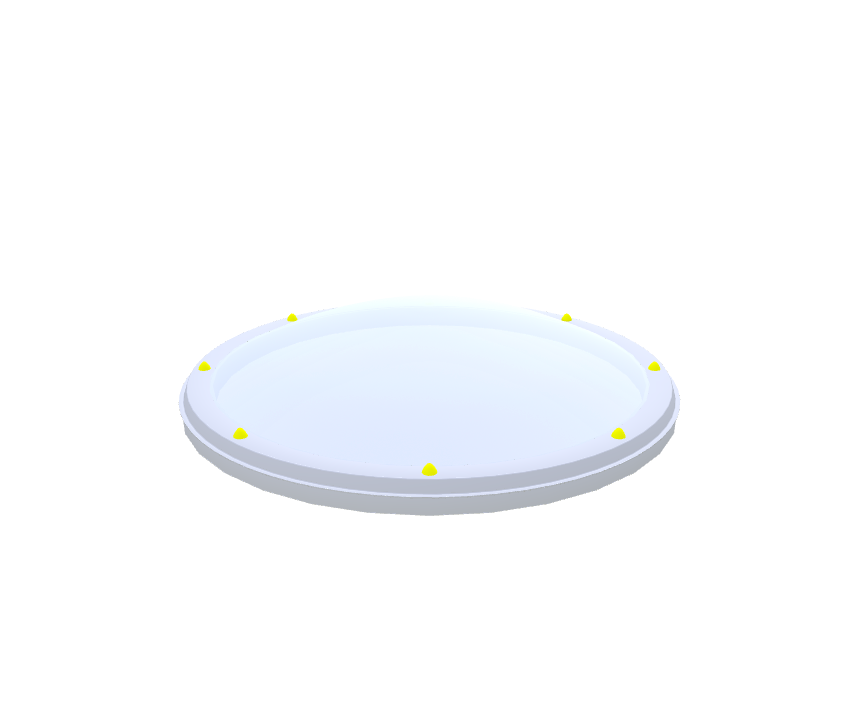

Skylux ronde lichtkoepel met diameter ⌀ 180 cm

Skylux round skylight with diameter ⌀ 180 cm

€1.104,75

Product variants

SKU: 14090

EAN: 5412970140900

Single-walled (least insulating - 5.17 W/m²K) / Acrylic (10 times more impact-resistant than glass) / Clear * view like glass (H)

€1.104,75

Acrylic PMMA	# dome walls	Clear - Opal - Heatstop	Ut-value			LT-value			g-value			Rw-value
Acrylic PMMA	# dome walls	Clear - Opal - Heatstop	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome
"	single-walled	Clear (H)	5.17 W/m²K	1.19 W/m²K	0.93 W/m²K	90 %	37 %	68 %	87 %	57 %	46 %	-	24 dB	40 dB
"	"	Opal (O)	5.17 W/m²K	1.19 W/m²K	0.93 W/m²K	83 %	34 %	62 %	76 %	50 %	40 %	-	24 dB	40 dB
"	double-walled	Clear (H/H)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	81 %	33 %	61 %	75 %	50 %	40 %	20 dB	26 dB	40 dB
"	"	Opal (O/O)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	69 %	28 %	52 %	58 %	38 %	31 %	20 dB	26 dB	40 dB
"	triple-walled	Clear (H/H/H)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	73 %	30 %	55 %	65 %	43 %	34 %	22 dB	28 dB	40 dB
"	"	Opal (O/H/O)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	62 %	25 %	47 %	51 %	34 %	27 %	22 dB	28 dB	40 dB
"	four-walled	Clear (H/H/H/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	64 %	26 %	48 %	54 %	36 %	29 %	23 dB	29 dB	40 dB
"	"	Opal (H/H/O/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	59 %	24 %	44 %	48 %	32 %	25 %	23 dB	29 dB	40 dB
"	five-walled	Clear (H/H/H/H/H)	0.99 W/m²K	0.63 W/m²K	0.55 W/m²K	58 %	24 %	44 %	47 %	31 %	25 %	24 dB	30 dB	40 dB
"	"	Opal (O/H/H/H/H)	0.99 W/m²K	0.63 W/m²K	0.55 W/m²K	53 %	22 %	40 %	41 %	27 %	22 %	24 dB	30 dB	40 dB
Polycarbonate PC	# dome walls	Clear - Opal - Heatstop	Ut-value			LT-value			g-value			Rw-value
Polycarbonate PC	# dome walls	Clear - Opal - Heatstop	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome
"	single-walled	Clear (A)	5.17 W/m²K	1.19 W/m²K	0.93 W/m²K	88 %	36 %	66 %	83 %	55 %	44 %	-	24 dB	40 dB
"	"	Opal (D)	5.17 W/m²K	1.19 W/m²K	0.93 W/m²K	58 %	24 %	44 %	60 %	40 %	32 %	-	24 dB	40 dB
"	double-walled	Clear (A/H)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	79 %	32 %	59 %	72 %	48 %	38 %	20 dB	26 dB	40 dB
"	"	Clear (A/A)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	77 %	32 %	58 %	69 %	46 %	37 %	20 dB	26 dB	40 dB
"	"	Opal (A/O)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	73 %	30 %	55 %	63 %	42 %	33 %	20 dB	26 dB	40 dB
"	"	Opal (A/D)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	51 %	21 %	38 %	50 %	33 %	27 %	20 dB	26 dB	40 dB
"	triple-walled	Clear (A/H/H)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	71 %	29 %	53 %	63 %	42 %	33 %	22 dB	28 dB	40 dB
"	"	Opal (A/O/O)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	61 %	25 %	46 %	48 %	32 %	25 %	22 dB	28 dB	40 dB
"	four-walled	Clear (A/H/H/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	64 %	26 %	48 %	52 %	34 %	28 %	23 dB	29 dB	40 dB
"	"	Opal (A/H/O/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	59 %	24 %	44 %	46 %	30 %	24 %	23 dB	29 dB	40 dB
"	five-walled	Clear (A/H/H/H/H)	0.99 W/m²K	0.63 W/m²K	0.55 W/m²K	58 %	24 %	44 %	47 %	31 %	25 %	24 dB	30 dB	40 dB
"	"	Opal (A/H/O/H/H)	0.99 W/m²K	0.63 W/m²K	0.55 W/m²K	53 %	22 %	40 %	41 %	27 %	22 %	24 dB	30 dB	40 dB
PC Heatstop	# dome walls	Clear - Opal - Heatstop	Ut-value			LT-value			g-value			Rw-value
PC Heatstop	# dome walls	Clear - Opal - Heatstop	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome
"	single-walled	Heatstop Opal (T)	5.17 W/m²K	1.19 W/m²K	0.93 W/m²K	49 %	20 %	37 %	59 %	39 %	31 %	-	24 dB	40 dB
"	double-walled	Clear (T/H)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	44 %	18 %	33 %	51 %	34 %	27 %	20 dB	26 dB	40 dB
"	"	Opal (T/O)	2.90 W/m²K	0.98 W/m²K	0.79 W/m²K	41 %	17 %	31 %	45 %	30 %	24 %	20 dB	26 dB	40 dB
"	triple-walled	Clear (T/H/H)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	40 %	16 %	30 %	44 %	29 %	23 %	22 dB	28 dB	40 dB
"	"	Opal (T/H/O)	1.70 W/m²K	0.83 W/m²K	0.69 W/m²K	37 %	15 %	28 %	39 %	26 %	21 %	22 dB	28 dB	40 dB
"	four-walled	Clear (T/H/H/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	35 %	14 %	26 %	37 %	24 %	20 %	23 dB	29 dB	40 dB
"	"	Opal (T/H/O/H)	1.28 W/m²K	0.72 W/m²K	0.61 W/m²K	32 %	13 %	24 %	32 %	21 %	17 %	23 dB	29 dB	40 dB
EP10	# dome walls	Clear - Opal - Heatstop	Ut-value			LT-value			g-value			Rw-value
EP10	# dome walls	Clear - Opal - Heatstop	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome	Skylight	+EP25	iDome
EP 10 koepel PMMA	6-wandig	Opal (H/E/O)	1.30 W/m²K	0.71 W/m²K	0.60 W/m²K	51 %	21 %	38 %	43 %	28 %	23 %	21 dB	27 dB	40 dB
EP 10 koepel PC	6-wandig	Opal (A/E/O)	1.30 W/m²K	0.71 W/m²K	0.60 W/m²K	50 %	21 %	38 %	41 %	27 %	22 %	21 dB	27 dB	40 dB
