renovatiekader pvc met inserts voor lichtkoepel of platdakraam 0600 x 1200 mm

adapter frame PVC with inserts for skylight or flat roof window 0600 x 1200 mm

Name: adapter frame PVC with inserts for skylight or flat roof window 0600 x 1200 mm
Brand: Skylux
SKU: 113008
Price: 378.44 EUR
Availability: InStock

€378,44

Product variants

Does this frame fit your existing curb?

Measure the current roof curb from the outer edges. To ensure that the adapter frame fits seamlessly over your existing curb, your measurement must fall within these margins:

Permitted outside width: Between 0700mm & 0790mm
Permitted outside length: Between 1300mm & 1390mm

(Rule of thumb: the frame fits as long as the total outside dimension of your existing curb is no more than 190 mm larger than the selected daylight size).

Popular accessories

Skylux skylight 60x120 cm

€280,88

Skylux platdakraam Vitria 60x120 cm - Skylux

Skylux flat roof window Vitria 60x120 cm

€726,00

iWindow Vast Platdakraam 60x120 cm - Skylux

iWindow Fixed Flat Roof Window 60x120 cm

€885,37

For heated areas, a minimum specification of 3-walled skylights is recommended for the best insulation.

SKU: 113008

EAN: 5401129130084

adapter frame PVC with inserts for skylight or flat roof window 0600 x 1200 mm

€378,44

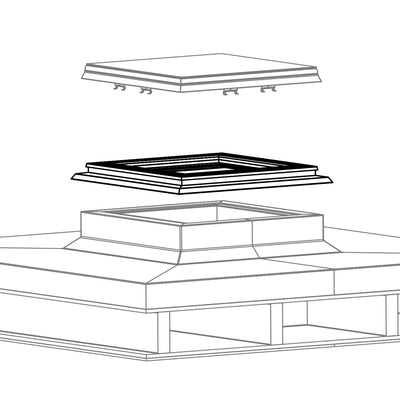

The Skylux® PVC adapter frame with inserts 0600 x 1200 mm is extremely suitable for both complete and partial refurbishments of existing skylights, where the original curb can be preserved. The frame offers a flexible and reliable solution to replace or upgrade traditional skylights with modern Skylux flat roof windows or hybrid skylights, without the need to remove or significantly modify the existing roof structure.

Product details

View measuring guide

Ue value (Insulation value of the frame in W/m²K)

0,78 W/m²K

Urc value Skylux® flat roof window with adapter frame and curb (W/m²K)

0,66 - 1,11 W/m²K (depending on the selected curb and type iWindow2/iWindow3 or iDome)

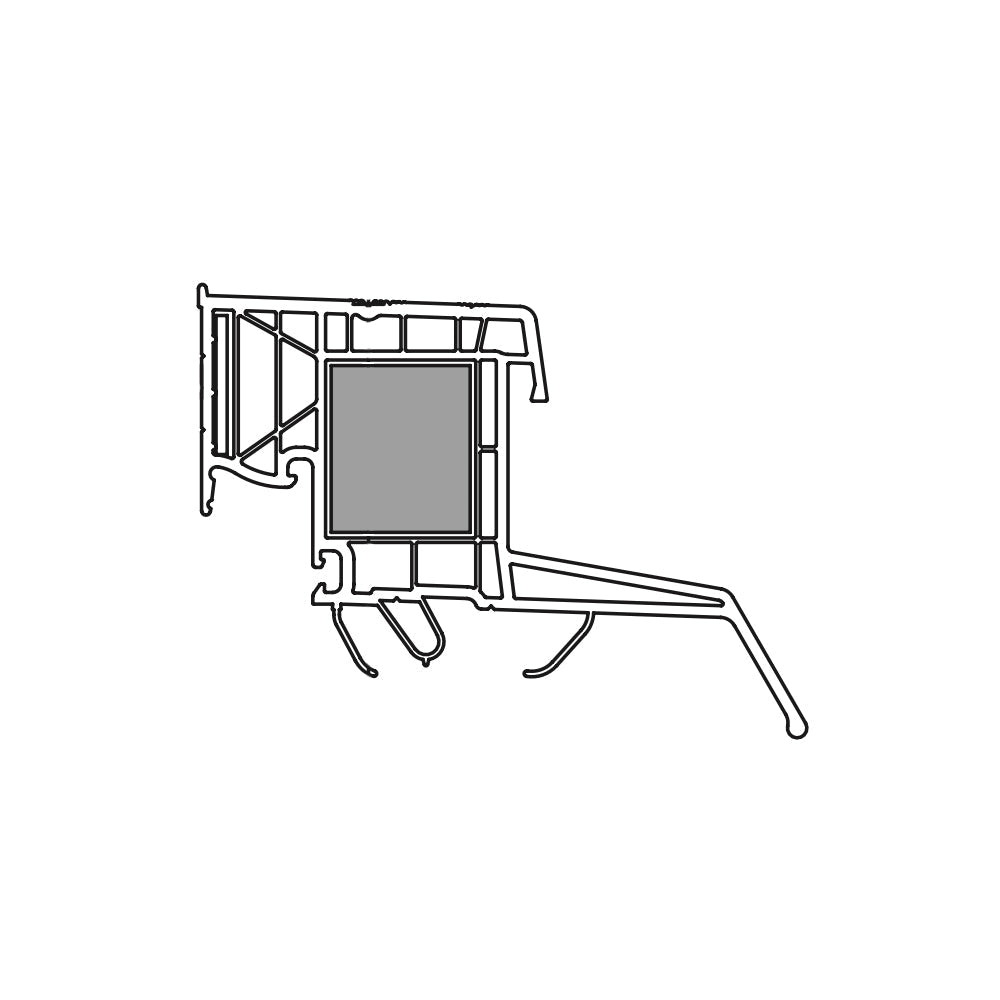

Dimensions (Thickness x Height x Width at the bottom in mm)

60 x 55 x 95 mm

Material & Density

uPVC (impact-resistant white frame quality) with EPS insulation
PVC: 1500 kg/m ³ / EPS insulation: 28 kg/m ³ (λ = 0,035 W/m².K)

Fire class (according to EN 13501-1) & Certification

B-s3,d0
CE according to EN 1873:2014+A1:2016 (in combination with a Skylux skylight)

Extra properties

Equipped with a flashing flange, integrated hollow space (to be used as a lining groove or cable trunking), direct installation on an existing curb (min. 150 mm height), compatible with drip edge and staggered daylight size.
