Delivery time: 5 – 10 working days

adapter frame PVC with inserts for skylight or flat roof window 1000 x 2000 mm

€411,03
Tax included. Shipping calculated at checkout.

Choose style

Skylux lichtkoepel 100x200 cmSkylux lichtkoepel 100x200 cm
Skylux skylight 100x200 cm
Skylux platdakraam Vitria 1000 x 2000 mmSkylux platdakraam Vitria 1000 x 1000 mm
Skylux flat roof window Vitria 1000 x 2000 mm
Montagehandleiding Renovatiekader
Installation instructions - Adapter frame
Technisch Dossier Renovatiekader
Technical file - Adapter frame
Add to WishlistCompare
Order within [totalHours] hour(s) %M minute(s) for delivery between and
Vendor: 0.0 kg
Type: Adapter frame
SKU: 112426
Barcode: 5401129124267
Availability : €411,03 Out of stock

Please note! For curbs with drip edge: Only possible if measured daylight size + thickness of drip edge is smaller than or equal to 1038x2038mm. Permitted height drip edge = 2 - 22mm

For curbs without drip edge: Only possible if measured daylight size is smaller than or equal to 1030x2030mm

Width support surface (roofing incl.)

  • Curbs with drip edge = Min. 31mm
  • Curbs without drip edge = Min. 35mm

Please add recommended combinable products below if desired and available:

Description
The Skylux® PVC adapter frame with inserts 1000 x 2000 mm is extremely suitable for both complete and partial refurbishments of existing skylights, where the original curb can be preserved. The frame offers a flexible and reliable solution to replace or upgrade traditional skylights with modern Skylux flat roof windows or hybrid skylights, without the need to remove or significantly modify the existing roof structure.
Other documents
Return & Classification
Class: C05

Let op: Producten met de classificaties C05, C05P, C10, C10P, C15, C20, C25, C30, C40, C50, D en E (zoals hierboven vermeld) worden beschouwd als op maat gemaakte en gepersonaliseerde producten en worden niet geaccepteerd voor retournering. Enkel producten met classificatie A & B kunnen worden geretourneerd. Zorg ervoor dat je goed geïnformeerd bent alvorens te bestellen en aarzel niet om contact met ons op te nemen bij twijfel. We helpen je graag om de perfecte oplossing te bepalen voor jouw (ver)bouwproject.

Adapter frame fits on:

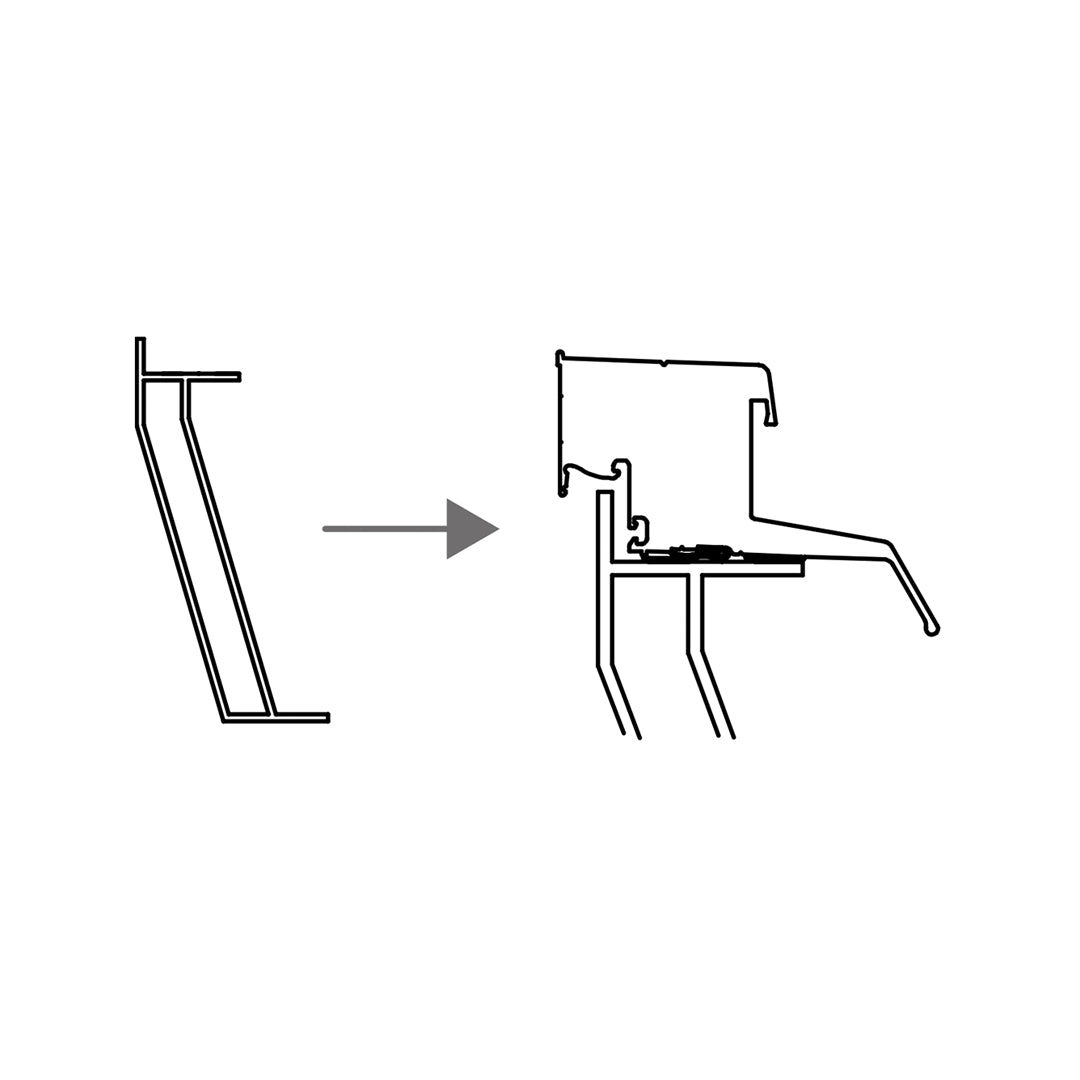

e.g. on a non-Skylux polyester curb with a slightly larger daylight size and drip edge

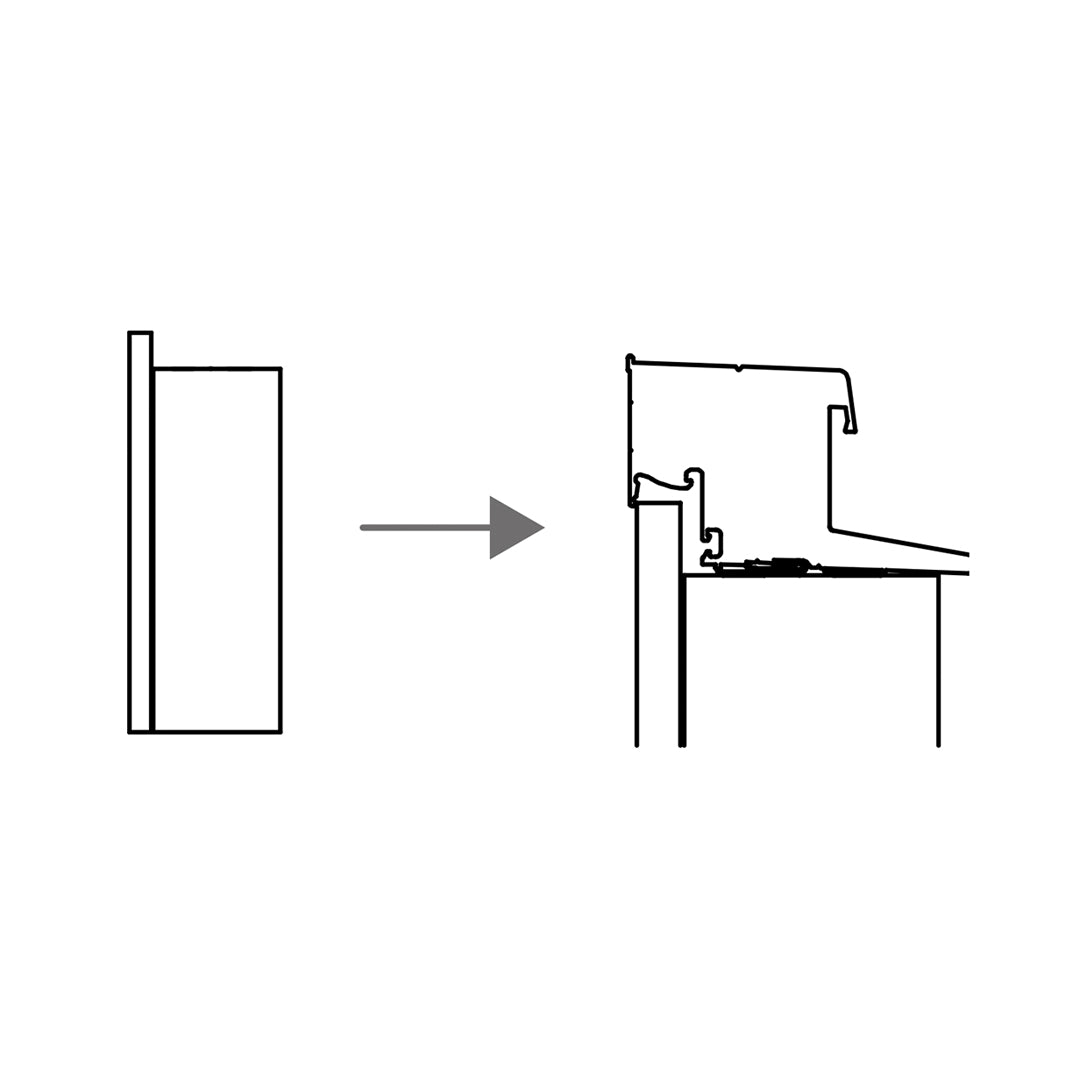

e.g. on a wooden curb and use of lining groove

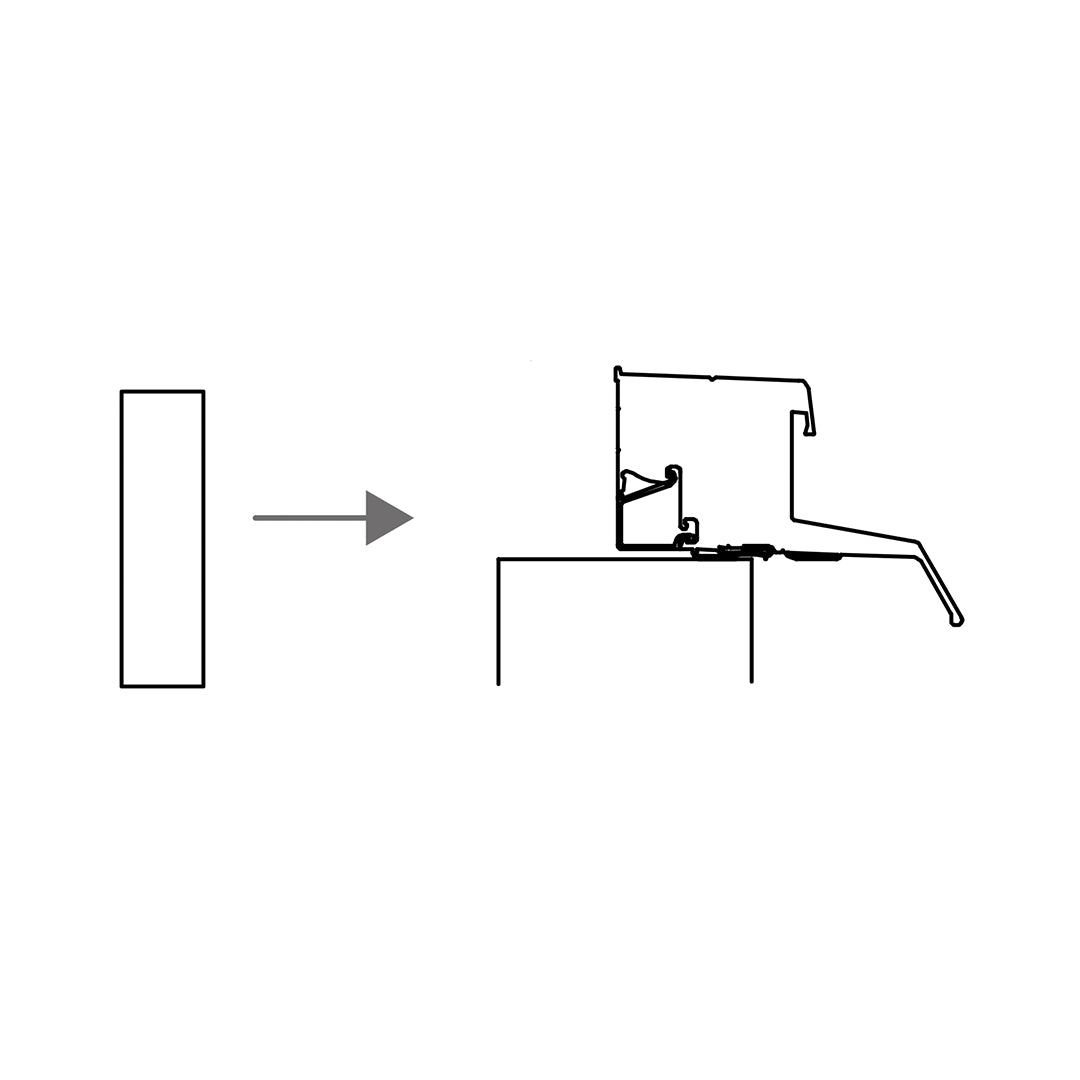

e.g. on a wider wooden curb and smaller daylight size / roof opening

Easy installation is possible by screwing the adapter frame onto an existing curb with pulled up roofing, and no additional roofing needs to be pulled up any further. Both a fixed and an openable Skylux flat roof window or hybrid skylight can be clipped or mounted onto the frame as standard. The optional stand-alone electric interior screen can also be mounted in the daylight size of the adapter frame.

Properties: assembled unit


*** Urc-value Skylux iWindow / iDome with adapter frame and curb (W/m²K)

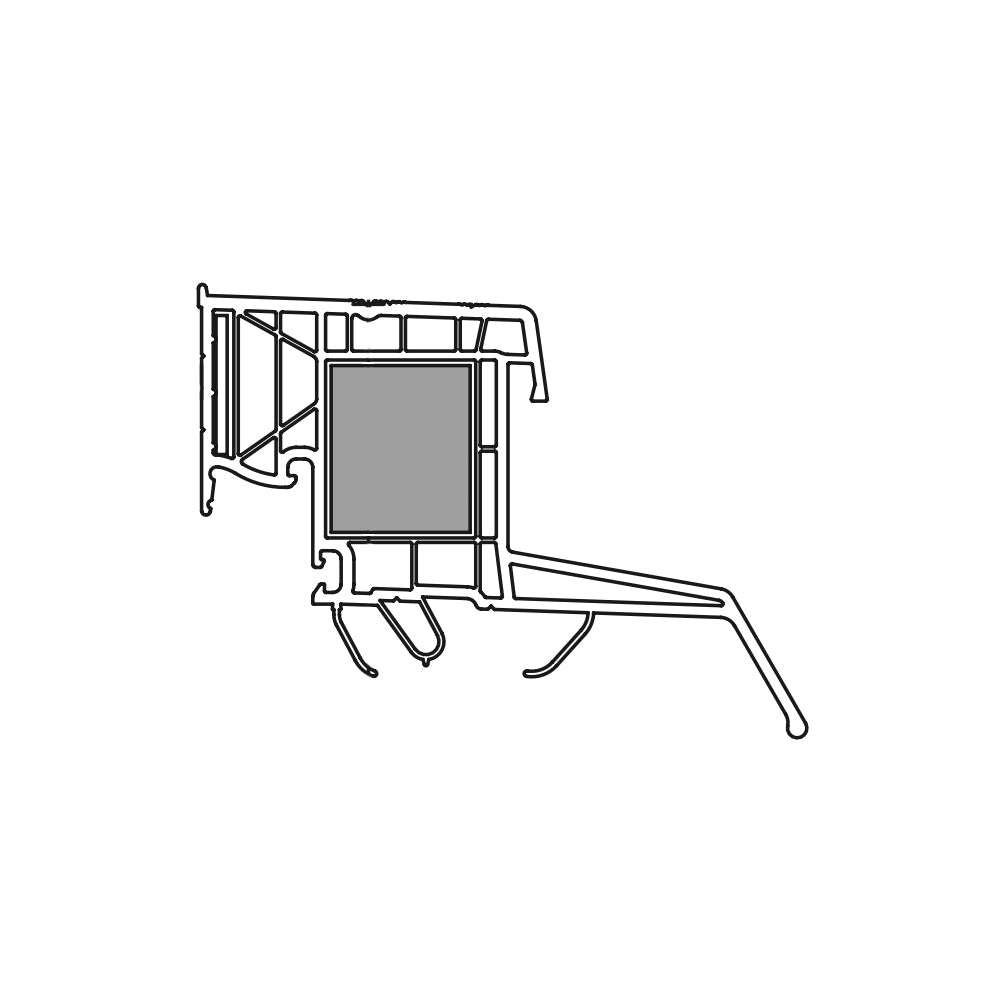

Specific properties: PVC adapter frame

Mechanical properties: uPVC - impact-resistant quality for frames, white
Thermal properties: PVC with insulation
EN 10077-2:2012: Ue-value* 0.78 W/m².K (insulation EPS separate, with λ = 0.035 W/m².K)
Dimensions: thickness 60 mm, width below 95 mm, height 55 mm
Density: PVC 1500 kg/m³ (insulation EPS 28 kg/m³)

Features

Ideal for partial refurbishments

The Skylux® adapter frame is extremely suitable for both complete and partial refurbishments of existing skylights, where the original curb can be preserved. It offers a flexible and reliable solution to replace or upgrade traditional skylights with modern Skylux flat roof windows or hybrid skylights, without the need to remove or drastically modify the existing curb.

Skylux skylight or flat roof window / hybrid skylight fits even more types of different curbs:
  • on polyester curbs with equal or staggered daylight size and possible drip edge
  • on narrow or wide wooden curbs (height min. 150 mm), with equal or staggered daylight size
Easy installation:
  • Direct installation, on top of an existing finished curb (and saves costs for demolition and replacing the curb and roofing)
  • Fix with screws
  • No need to pull up additional roofing onto the adapter frame
Even more features:
  • Good insulation
  • Good technical performances: wide and stable, airtight, watertight
  • Finish possibilities on the visible inside: lining groove for plasterboard, or combination with cover profile as cable trunking
  • Match with accessories: electric interior screen, etc.

Hollow space:

Over drip edge of existing curb

Lining groove

Cable trunking
