Skylux 160° CE met koepel en metaalopstand met dubbele LM-motor 1000 x 2800 mm
Skylux 160° CE met koepel en metaalopstand met dubbele LM-motor 1000 x 2800 mm
Skylux 160° CE met koepel en metaalopstand met dubbele LM-motor 1000 x 2800 mm

Delivery time: Delivery time on request

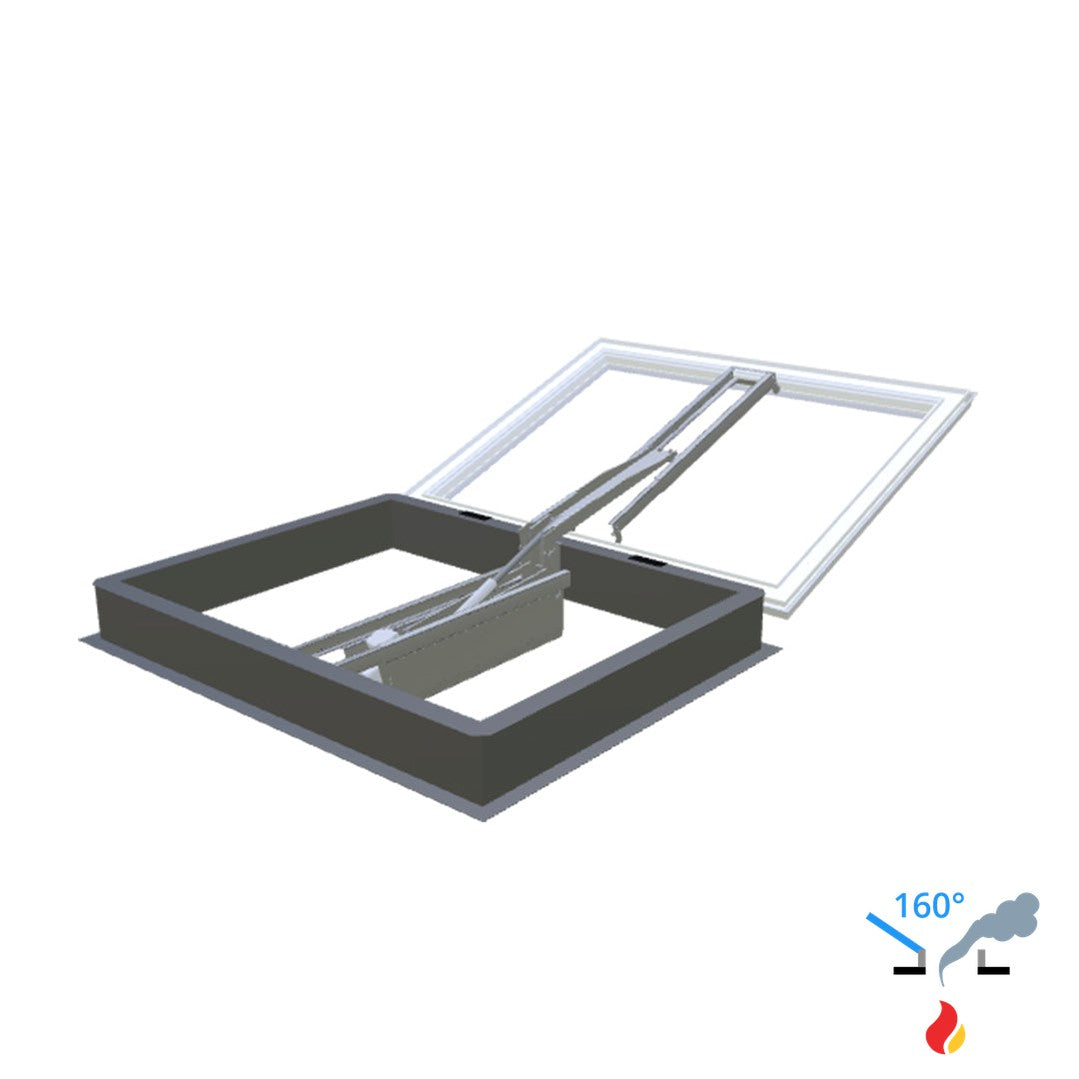

Skylux 160° CE with skylight and metal curb with double LM-actuator 1000 x 2800 mm

€5.749,01
Tax included. Shipping calculated at checkout.

Add recommended compatible products below if desired & available:Maximum four-walled skylight possible for this product

Skylux 160° CE met koepel en metaalopstand met dubbele LM-motor 1000 x 2800 mm Skylux 160° CE with skylight and metal curb with double LM-actuator 1000 x 2800 mm
€5.749,01
Skylux skylight 100x280 cm Skylux skylight 100x280 cm
€810,00
Skycom CE master centrale 24V 8A Skycom CE Master control unit 24V 8A
€943,02
Skycom CE slave centrale 24V 8A Skycom CE Slave control unit 24V 8A
€569,01
Externe prioritaire schakelaar voor brandweer External priority switch for fire brigade
€223,02
Subtotal: €5.749,01
Add to WishlistCompare
Order within 11 hour(s) 05 minute(s) for delivery between Wednesday, 14 May and Wednesday, 04 June
Vendor: 136.24 kg
Type: SHE system
SKU: 34585
Barcode: 5412970345855

Frequently Bought Together

Total price:€8.294,06
  • This item: Skylux 160° CE with skylight and metal curb with double LM-actuator 1000... €5.749,01
  • Skylux skylight 100x280 cm €810,00
  • Skycom CE Master control unit 24V 8A €943,02
  • Skycom CE Slave control unit 24V 8A €569,01
  • External priority switch for fire brigade €223,02
Description
Ut-value LT-value g-value Rw-value
EN 1873 : 2014 EN ISO 13468  EN 16153 EN 410 EN 410 EN ISO 140-3
Material Walls Shells (W/m²K)     (%) (%) (dB)
Acrylic Single-walled Clear (H) 5.17 90 87 -
PMMA Single-walled Opal (O) 5.17 83 76 -
Double-walled Clear (H/H) 2.90 81 75 20
Double-walled Opal (O/O) 2.90 69 58 20
Triple-walled Clear (H/H/H) 1.70 73 65 22
Triple-walled Opal (O/H/O) 1.70 62 51 22
Four-walled Clear (H/H/H/H) 1.28 64 54 23
Four-walled Opal (H/H/O/H) 1.28 59 48 23
Polycarbonate  Single-walled Clear (A) 5.17 88 83 -
PC Single-walled Opal (D) 5.17 58 60 -
Double-walled Clear (A/H) 2.90 79 72 20
Double-walled Clear (A/A) 2.90 77 69 20
Double-walled Opal (A/O) 2.90 73 63 20
Double-walled Opal (A/D) 2.90 51 50 20
Triple-walled Clear (A/H/H) 1.70 71 63 22
Triple-walled Opal (A/O/O) 1.70 61 48 22
Four-walled Clear (A/H/H/H) 1.28 64 52 23
Four-walled Opal (A/H/O/H) 1.28 59 46 23
Polycarbonate Single-walled Heatstop Opal (T) 5.17 49 59 -
Heatstop PC Double-walled Clear (T/H) 2.90 44 51 20
Double-walled Opal (T/O) 2.90 41 45 20
Triple-walled Clear (T/H/H) 1.70 40 Installation instructions
- Download
Nederlands: Download in documentenzoeker
Français: Télécharger dans le chercheur de documents
English: Download in document finder
Deutsch: Im Dokumentfinder herunterladen
Technical file
- Download
Nederlands: Download in documentenzoeker
Français: Télécharger dans le chercheur de documents
English: Download in document finder
Deutsch: Im Dokumentfinder herunterladen
Other documents
Return & Classification
Classificatie: E

Please note: products rated C05, C05P, C10, C10P, C15, C20, C25, C30, C40, C50, D and E (as mentioned above) are considered custom and personalised products and will not be accepted for return. Only products with classification A & B can be returned. Make sure you are well informed before ordering and do not hesitate to contact us if you have any doubts. We are happy to help you determine the perfect solution for your construction or refurbishment project.
