From basic to extra insulating
Less time on site
Years of carefree use
Extra impact-resistant & safe
Replace old skylights easily
Maximum light or privacy
Skylux skylight 50x170 cm
For heated areas, we recommend at least a 3-walled skylight for optimal insulation.
Popular accessories
From basic to extra insulating
Less time on site
Years of carefree use
Extra impact-resistant & safe
Replace old skylights easily
Maximum light or privacy

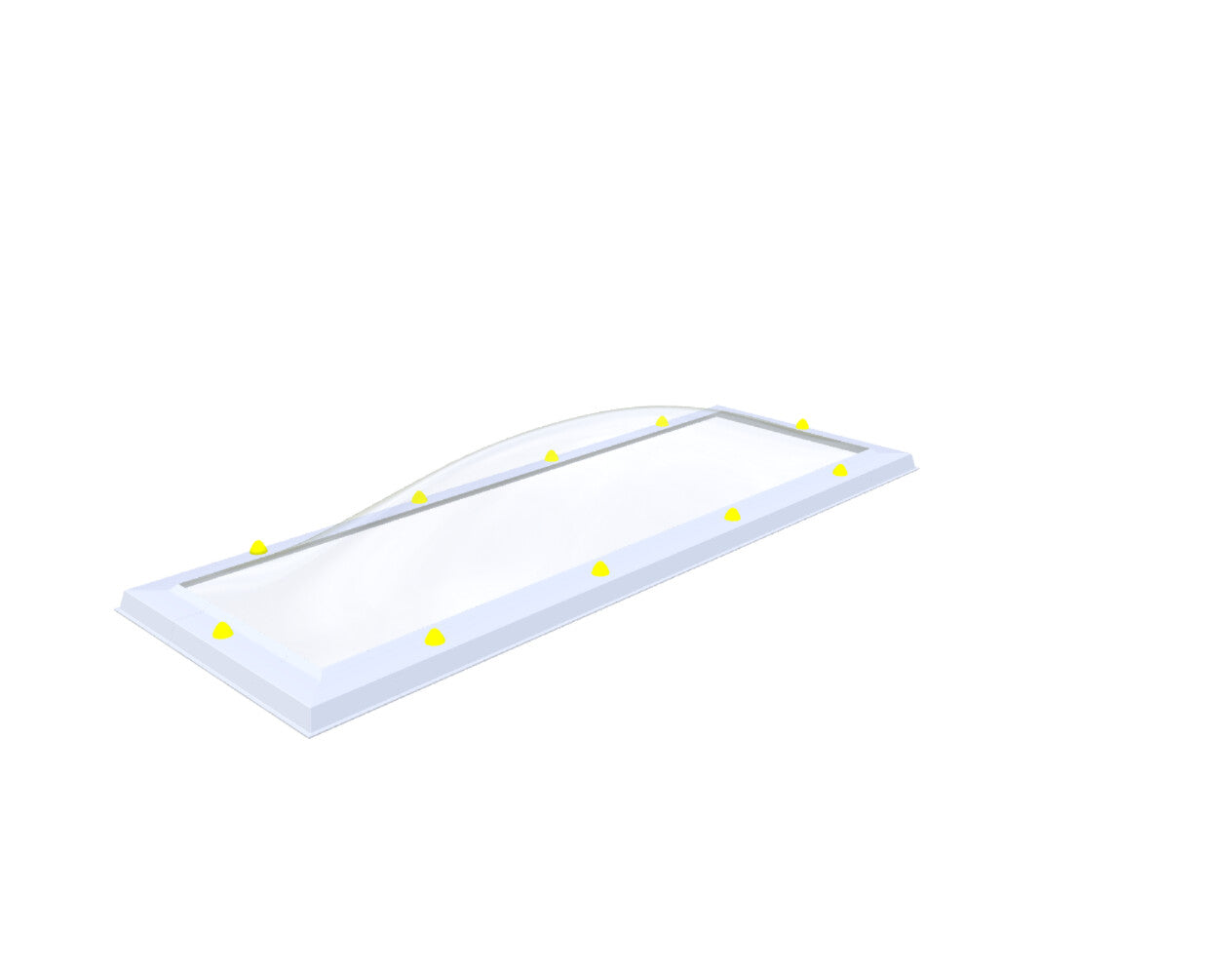

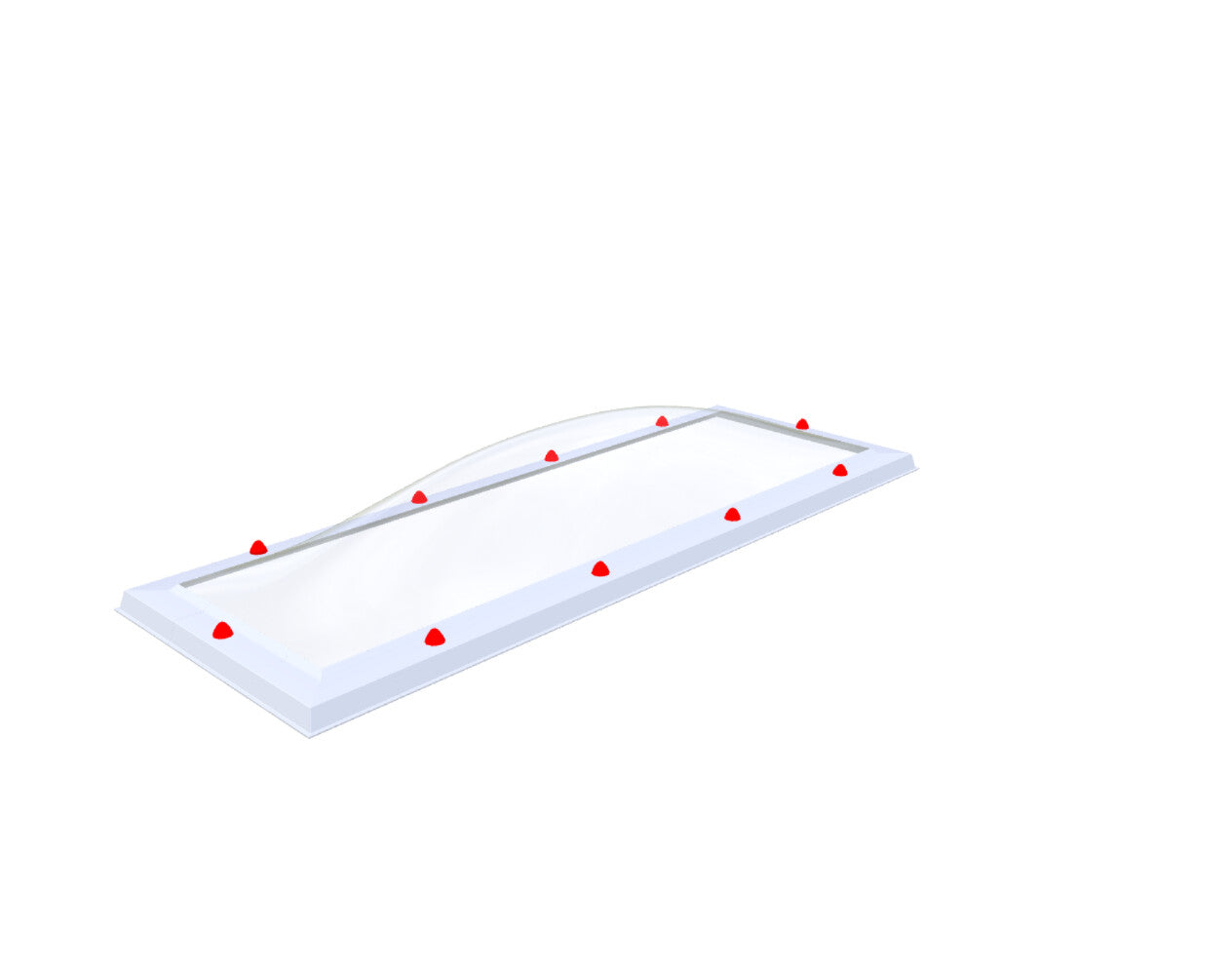

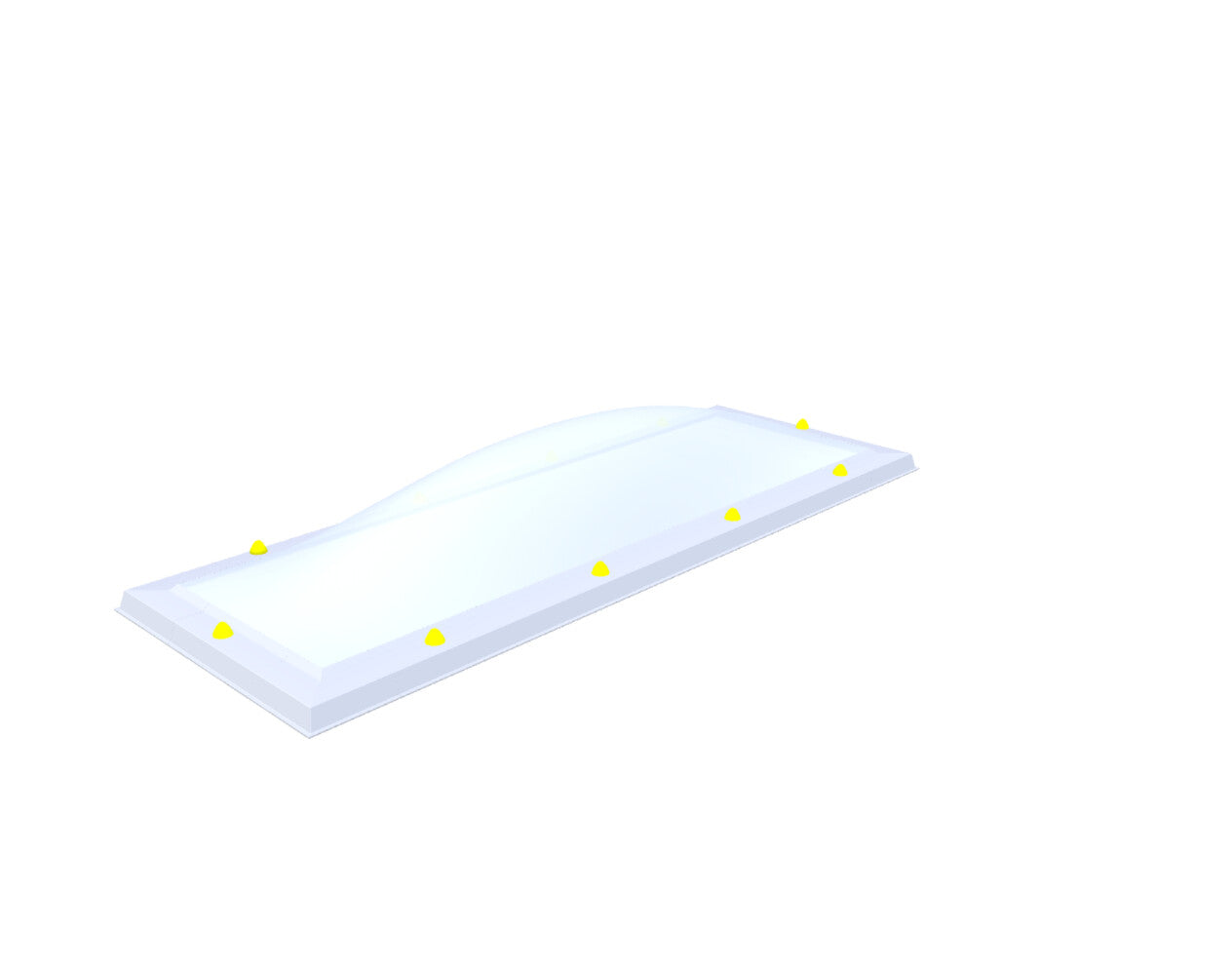

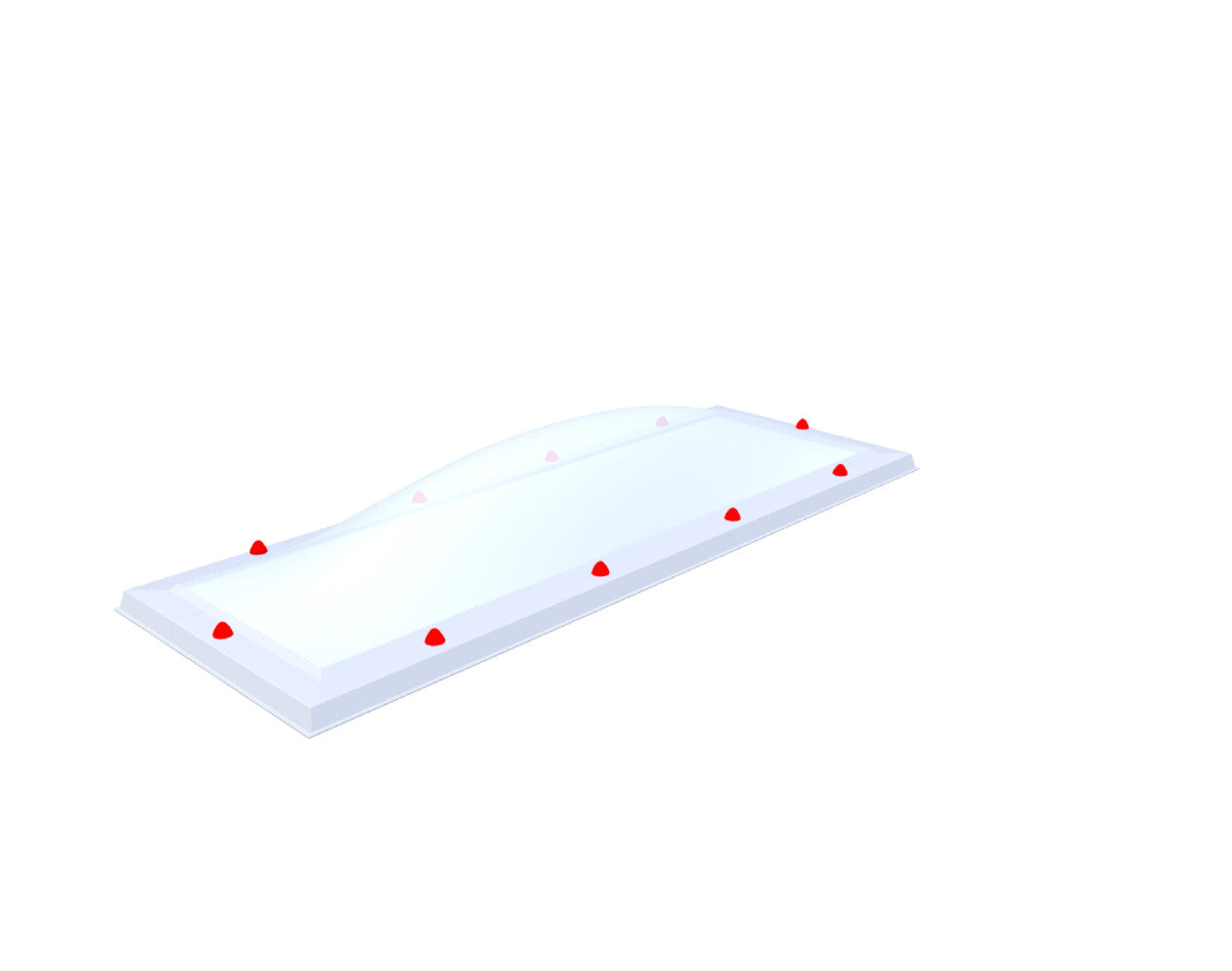

Skylux skylight 50x170 cm
Looking for a way to bring more natural light into your home or workspace? Then be sure to consider a 500x1700 Skylux skylight! Our skylights are available in various sizes and materials, allowing you to find the perfect match for your project. Choose from acrylic or polycarbonate, single- or multi-wall, and clear, opal or heatstop versions. In addition, our skylights are also available in both fixed and opening versions.
For a complete renovation or new build, a curb is required for the correct installation of the skylight. Fortunately, you can also select the curb directly on this page. Whether you are looking for a fixed or opening version, at Skylux we have everything you need to find the perfect skylight for your project.
Moreover, our skylights are not only a stylish addition to any space, but also offer excellent thermal and sound insulation. This ensures a more comfortable and energy-efficient home or office. Whether you are planning a renovation or building a new home, choose the reliable and high-quality skylights from Skylux.
Product details
Discover the technical performance of our acrylic (PMMA), polycarbonate (PC) and PC Heatstop skylights. Easily compare the insulation value (Uw/Ut), light transmission, sun protection and sound insulation of different versions and wall thicknesses. Ideal for anyone looking for an energy-efficient, durable and high-quality skylight for flat roofs.
Acrylaat PMMA
| # wanden | Type | Ut-waarde | LT-waarde | g-waarde | Rw-waarde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | ||
| 1-wandig | Helder (H) | 5.17 W/m²K | 1.19 W/m²K | 0.93 W/m²K | 90 % | 37 % | 68 % | 87 % | 57 % | 46 % | - | 24 dB | 40 dB |
| 1-wandig | Opaal (O) | 5.17 W/m²K | 1.19 W/m²K | 0.93 W/m²K | 83 % | 34 % | 62 % | 76 % | 50 % | 40 % | - | 24 dB | 40 dB |
| 2-wandig | Helder (H/H) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 81 % | 33 % | 61 % | 75 % | 50 % | 40 % | 20 dB | 26 dB | 40 dB |
| 2-wandig | Opaal (O/O) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 69 % | 28 % | 52 % | 58 % | 38 % | 31 % | 20 dB | 26 dB | 40 dB |
| 3-wandig | Helder (H/H/H) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 73 % | 30 % | 55 % | 65 % | 43 % | 34 % | 22 dB | 28 dB | 40 dB |
| 3-wandig | Opaal (O/H/O) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 62 % | 25 % | 47 % | 51 % | 34 % | 27 % | 22 dB | 28 dB | 40 dB |
| 4-wandig | Helder (H/H/H/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 64 % | 26 % | 48 % | 54 % | 36 % | 29 % | 23 dB | 29 dB | 40 dB |
| 4-wandig | Opaal (H/H/O/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 59 % | 24 % | 44 % | 48 % | 32 % | 25 % | 23 dB | 29 dB | 40 dB |
| 5-wandig | Helder (H/H/H/H/H) | 0.99 W/m²K | 0.63 W/m²K | 0.55 W/m²K | 58 % | 24 % | 44 % | 47 % | 31 % | 25 % | 24 dB | 30 dB | 40 dB |
| 5-wandig | Opaal (O/H/H/H/H) | 0.99 W/m²K | 0.63 W/m²K | 0.55 W/m²K | 53 % | 22 % | 40 % | 41 % | 27 % | 22 % | 24 dB | 30 dB | 40 dB |
Polycarbonaat PC
| # wanden | Type | Ut-waarde | LT-waarde | g-waarde | Rw-waarde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | ||
| 1-wandig | Helder (A) | 5.17 W/m²K | 1.19 W/m²K | 0.93 W/m²K | 88 % | 36 % | 66 % | 83 % | 55 % | 44 % | - | 24 dB | 40 dB |
| 1-wandig | Opaal (D) | 5.17 W/m²K | 1.19 W/m²K | 0.93 W/m²K | 58 % | 24 % | 44 % | 60 % | 40 % | 32 % | - | 24 dB | 40 dB |
| 2-wandig | Helder (A/H) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 79 % | 32 % | 59 % | 72 % | 48 % | 38 % | 20 dB | 26 dB | 40 dB |
| 2-wandig | Helder (A/A) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 77 % | 32 % | 58 % | 69 % | 46 % | 37 % | 20 dB | 26 dB | 40 dB |
| 2-wandig | Opaal (A/O) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 73 % | 30 % | 55 % | 63 % | 42 % | 33 % | 20 dB | 26 dB | 40 dB |
| 2-wandig | Opaal (A/D) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 51 % | 21 % | 38 % | 50 % | 33 % | 27 % | 20 dB | 26 dB | 40 dB |
| 3-wandig | Helder (A/H/H) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 71 % | 29 % | 53 % | 63 % | 42 % | 33 % | 22 dB | 28 dB | 40 dB |
| 3-wandig | Opaal (A/O/O) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 61 % | 25 % | 46 % | 48 % | 32 % | 25 % | 22 dB | 28 dB | 40 dB |
| 4-wandig | Helder (A/H/H/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 64 % | 26 % | 48 % | 52 % | 34 % | 28 % | 23 dB | 29 dB | 40 dB |
| 4-wandig | Opaal (A/H/O/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 59 % | 24 % | 44 % | 46 % | 30 % | 24 % | 23 dB | 29 dB | 40 dB |
| 5-wandig | Helder (A/H/H/H/H) | 0.99 W/m²K | 0.63 W/m²K | 0.55 W/m²K | 58 % | 24 % | 44 % | 47 % | 31 % | 25 % | 24 dB | 30 dB | 40 dB |
| 5-wandig | Opaal (A/H/O/H/H) | 0.99 W/m²K | 0.63 W/m²K | 0.55 W/m²K | 53 % | 22 % | 40 % | 41 % | 27 % | 22 % | 24 dB | 30 dB | 40 dB |
PC Heatstop
| # wanden | Type | Ut-waarde | LT-waarde | g-waarde | Rw-waarde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | ||
| 1-wandig | Heatstop Opaal (T) | 5.17 W/m²K | 1.19 W/m²K | 0.93 W/m²K | 49 % | 20 % | 37 % | 59 % | 39 % | 31 % | - | 24 dB | 40 dB |
| 2-wandig | Helder (T/H) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 44 % | 18 % | 33 % | 51 % | 34 % | 27 % | 20 dB | 26 dB | 40 dB |
| 2-wandig | Opaal (T/O) | 2.90 W/m²K | 0.98 W/m²K | 0.79 W/m²K | 41 % | 17 % | 31 % | 45 % | 30 % | 24 % | 20 dB | 26 dB | 40 dB |
| 3-wandig | Helder (T/H/H) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 40 % | 16 % | 30 % | 44 % | 29 % | 23 % | 22 dB | 28 dB | 40 dB |
| 3-wandig | Opaal (T/H/O) | 1.70 W/m²K | 0.83 W/m²K | 0.69 W/m²K | 37 % | 15 % | 28 % | 39 % | 26 % | 21 % | 22 dB | 28 dB | 40 dB |
| 4-wandig | Helder (T/H/H/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 35 % | 14 % | 26 % | 37 % | 24 % | 20 % | 23 dB | 29 dB | 40 dB |
| 4-wandig | Opaal (T/H/O/H) | 1.28 W/m²K | 0.72 W/m²K | 0.61 W/m²K | 32 % | 13 % | 24 % | 32 % | 21 % | 17 % | 23 dB | 29 dB | 40 dB |
EP10
| Materiaal | # wanden | Type | Ut-waarde | LT-waarde | g-waarde | Rw-waarde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | Koepel | +EP25 | iDome | |||
| EP 10 koepel PMMA | 6-wandig | Opaal (H/E/O) | 1.30 W/m²K | 0.71 W/m²K | 0.60 W/m²K | 51 % | 21 % | 38 % | 43 % | 28 % | 23 % | 21 dB | 27 dB | 40 dB |
| EP 10 koepel PC | 6-wandig | Opaal (A/E/O) | 1.30 W/m²K | 0.71 W/m²K | 0.60 W/m²K | 50 % | 21 % | 38 % | 41 % | 27 % | 22 % | 21 dB | 27 dB | 40 dB |
Specifications and instructions.
All documentation for design, specification and installation. Technical files, installation instructions and drawings - ready to download.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
