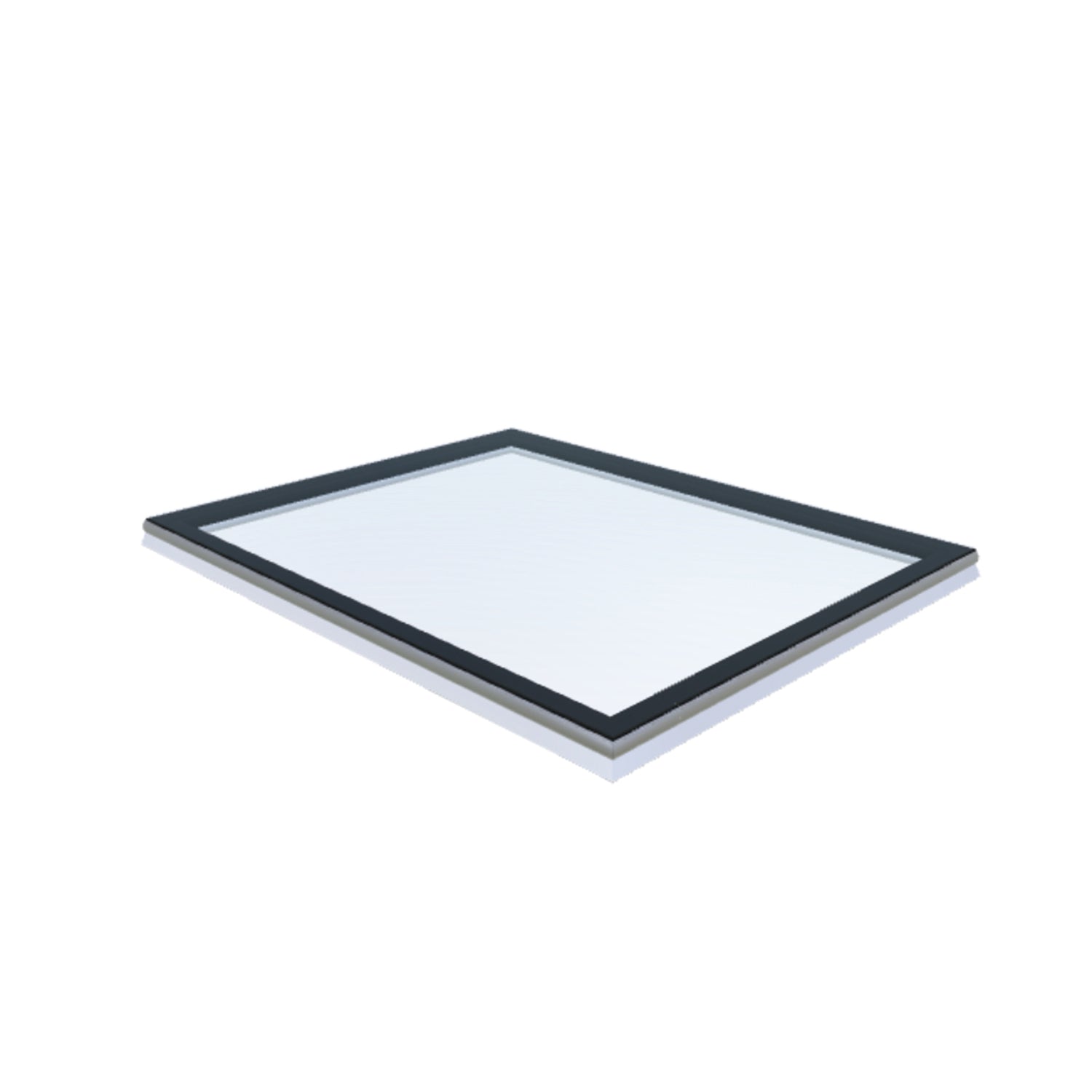

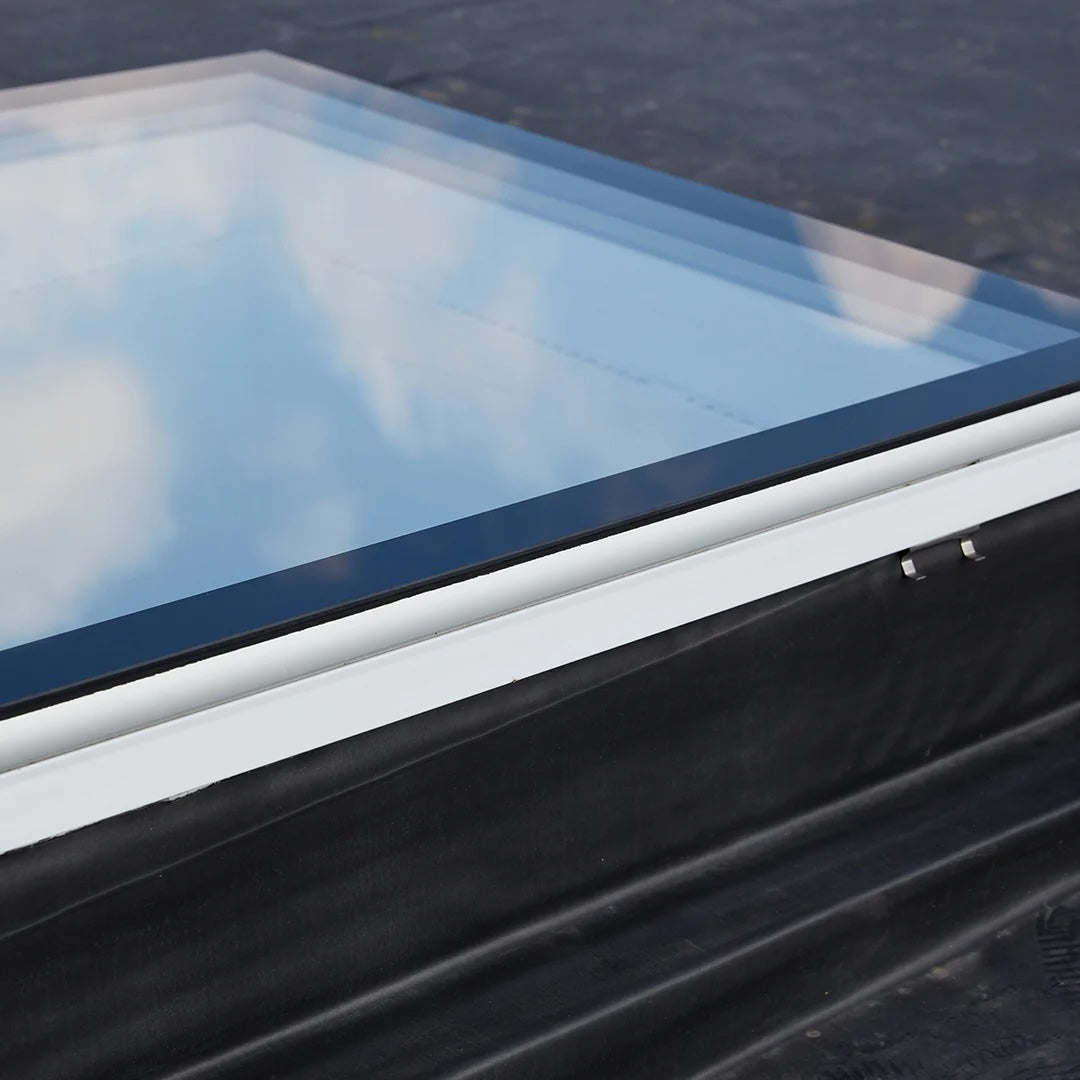

iWindow Fixed Flat Roof Window 110x140 cm

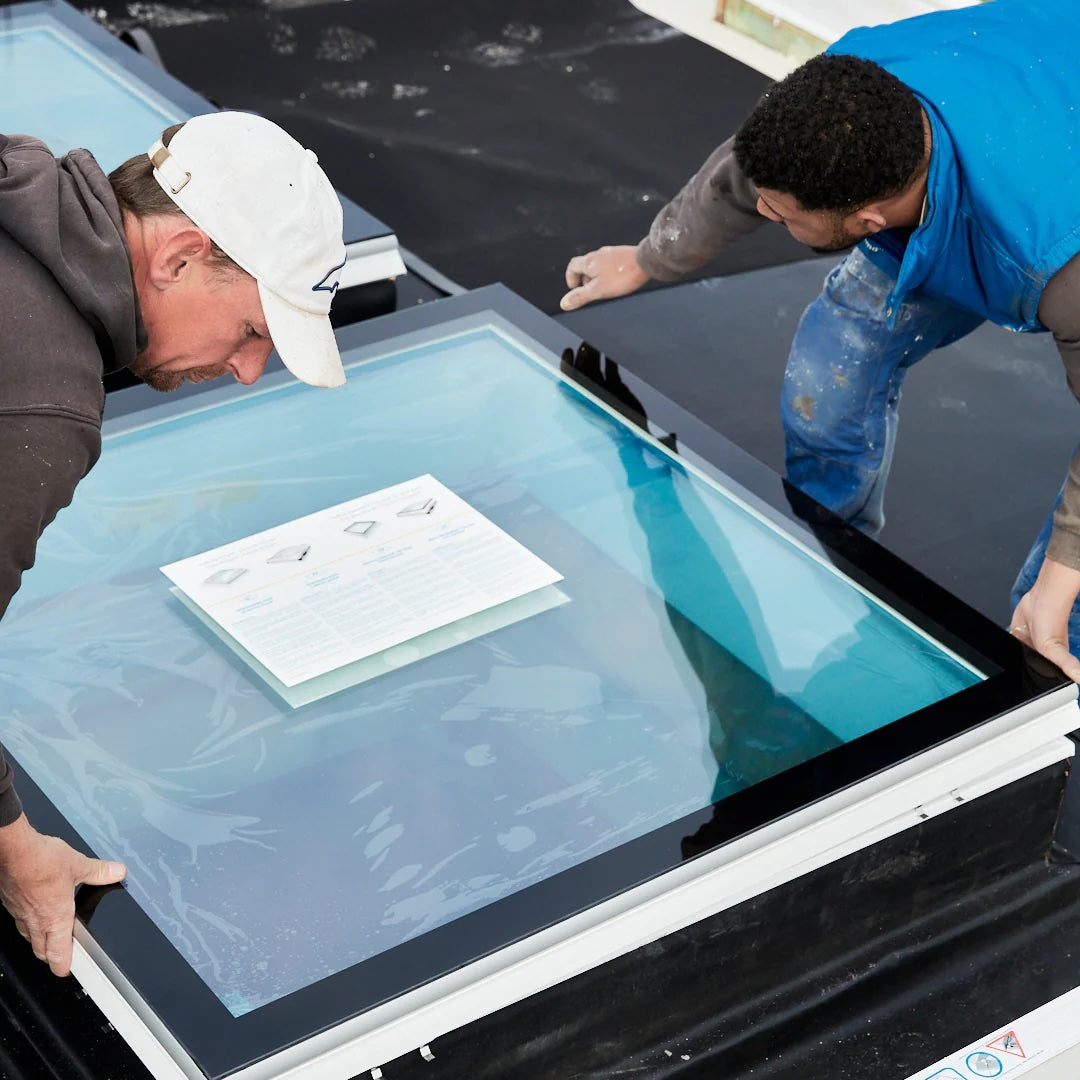

Een Skylux opstand is nodig voor correcte installatie. Bij plaatsing op een bestaande (niet Skylux) opstand, adviseren we een renovatiekader tussen de opstand en het nieuwe raam of koepel.
Populaire toebehoren
iWindow Fixed Flat Roof Window 110x140 cm
Product details
Ug-waarde (U glas of isolatiewaarde van de beglazing in W/m²K)
iWindow2
- Helder: 1.00 W/m²K

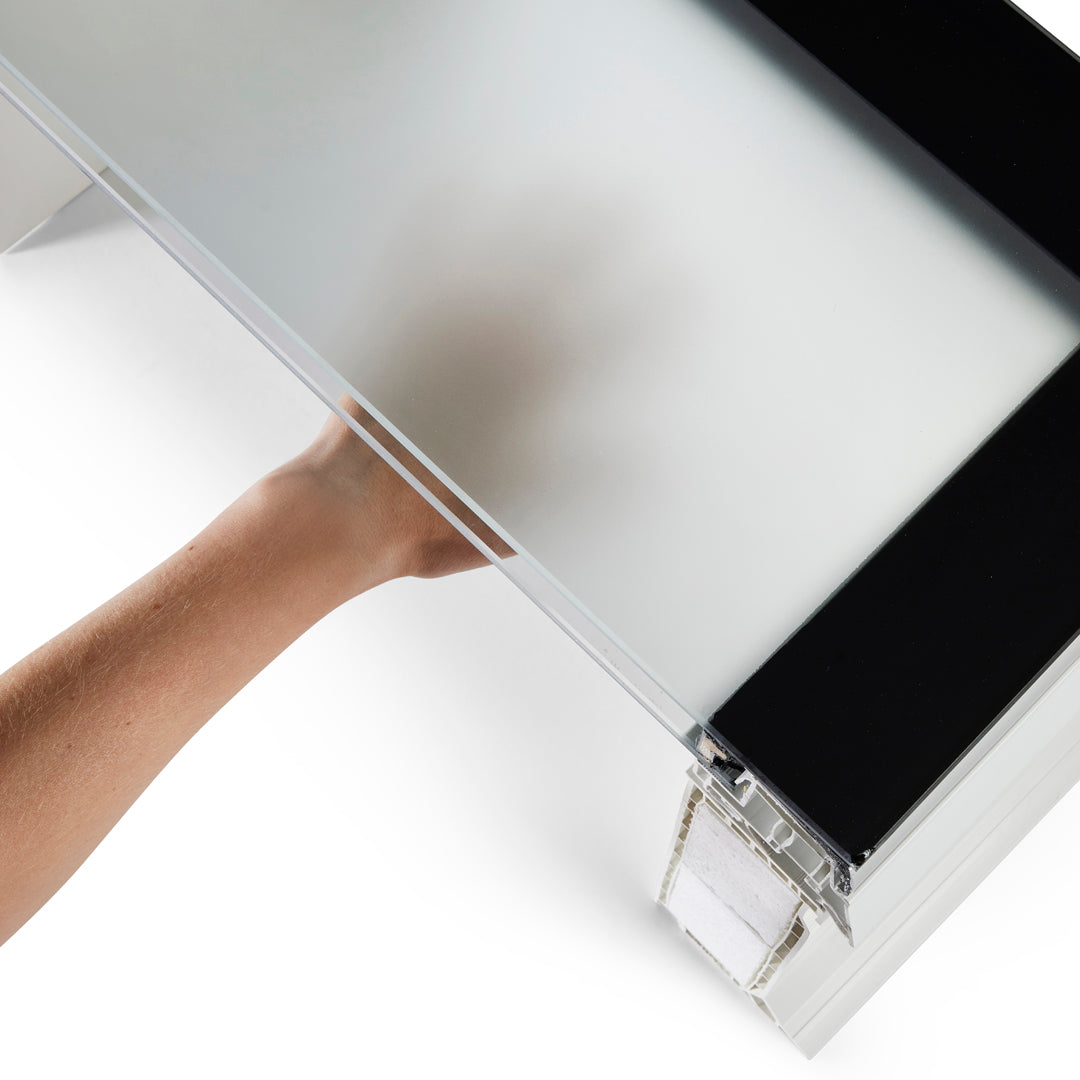

- Opaal: 1.00 W/m²K

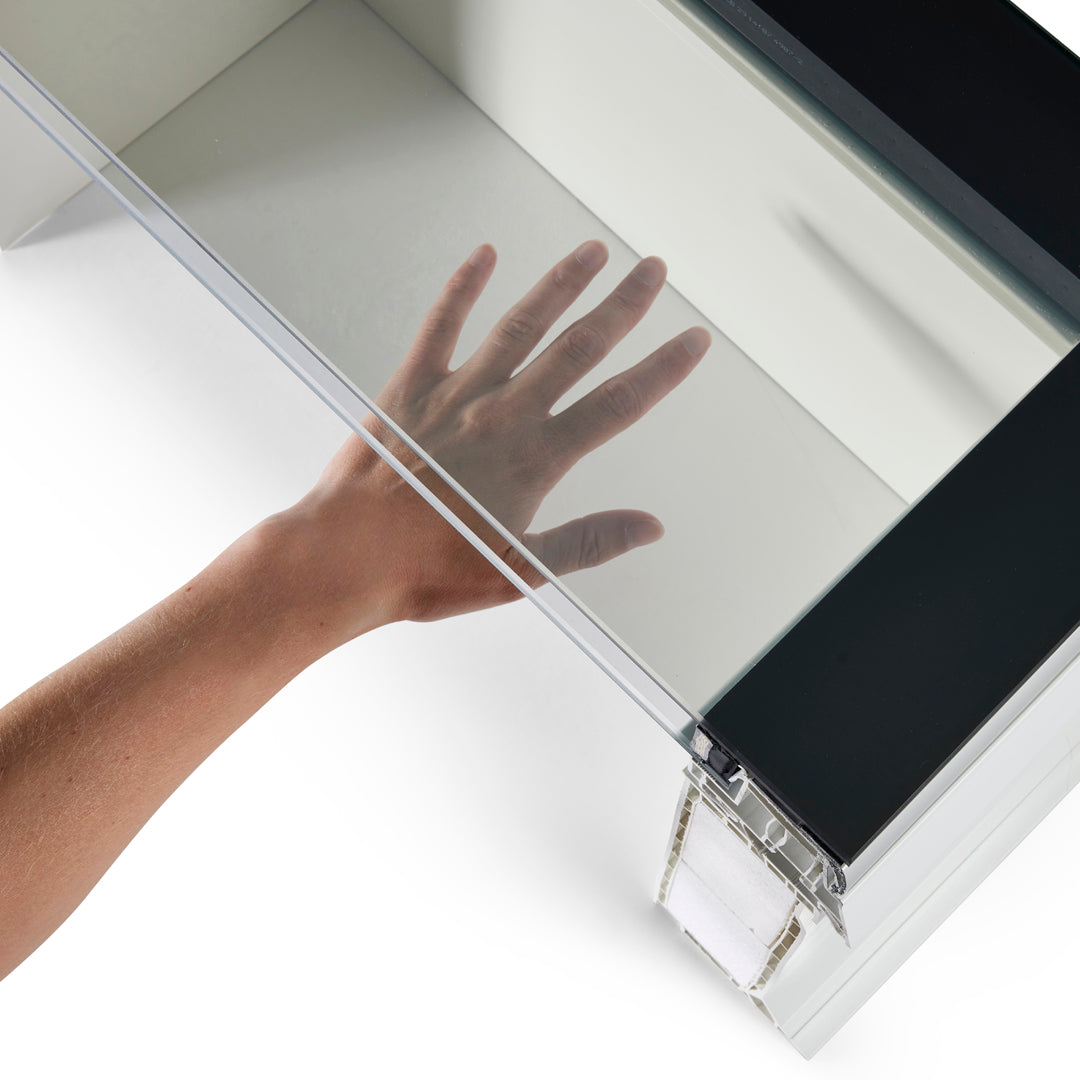

- Zonwerend: 1.00 W/m²K
iWindow3
- Helder: 0.50 W/m²K
- Opaal: 0.50 W/m²K
- Zonwerend: 0.50 W/m²K
Urc-waarde Skylux® iWindow met opstand (W/m²K)
- iWindow2
- iWindow3
LT-waarde (Lichttransmissie in %)
iWindow2
- Helder: 75%
- Opaal: 72%
- Zonwerend: 53%
iWindow3
- Helder: 63%
- Opaal: 61%
- Zonwerend: 46%
g-waarde (Totale doorgang van de zonne-energie in %)
iWindow2
- Helder: 52%
- Opaal: 50%
- Zonwerend: 40%
iWindow3
- Helder: 42%
- Opaal: 41%
- Zonwerend: 33%
Rw-waarde (Akoestisch dempingsgetal in dB)
- iWindow2: 39 dB
- iWindow3: 41 dB
Extra eigenschappen
iWindow2
- Helder:
- Dikte: ± 39 mm
- Gewicht ( kg/m²): ± 35 to 44 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer pane)
- Opaal:
- Dikte: ± 39 mm
- Gewicht ( kg/m²): ± 35 to 44 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer pane)
- Zonwerend:
- Dikte: ± 39 mm
- Gewicht ( kg/m²): ± 35 to 44 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer pane)
iWindow3
- Helder:
- Dikte: ± 61 mm
- Gewicht ( kg/m²): ± 55 to 60 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer and middle pane)
- Opaal:
- Dikte: ± 61 mm
- Gewicht ( kg/m²): ± 55 to 60 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer and middle pane)
- Zonwerend:
- Dikte: ± 61 mm
- Gewicht ( kg/m²): ± 55 to 60 kg/m²
- Mechanische eigenschap: Layered (inner pane) and tempered (outer and middle pane)
Specificaties en handleidingen.
Alle documentatie voor ontwerp, specificatie en montage. Technische dossiers, montagehandleidingen en tekeningen - klaar om te downloaden.
