PVC curb 800 x 1400

From €412,65
Tax included. Shipping calculated at checkout.

Fixed or openable?: Fixed version

Fixed version
Openable version

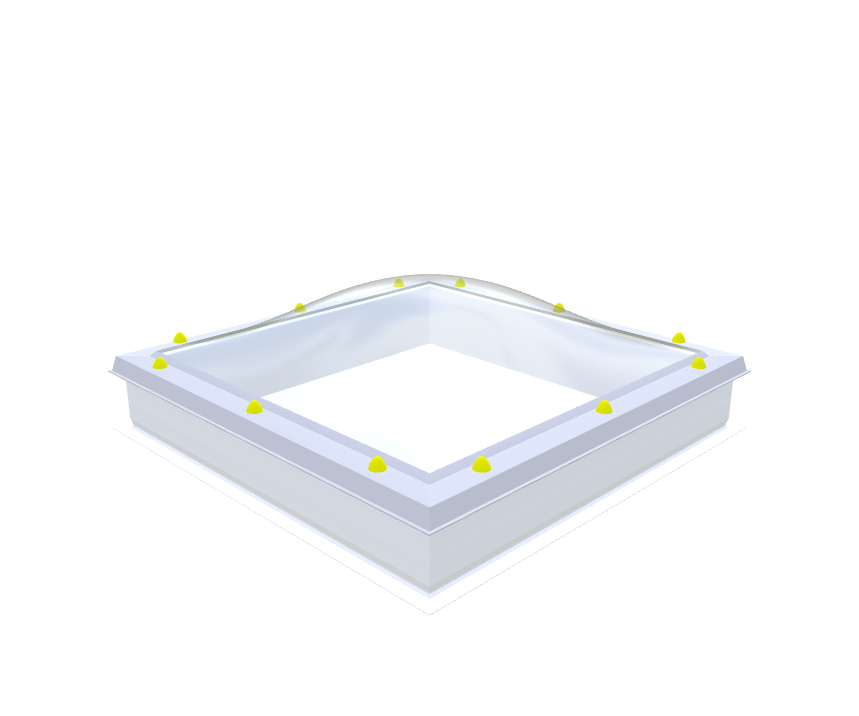

Curb type: Straight curb 20/00 - 20 cm high for skylight / flat roof window 800 x 1400 / Daylight size = roof opening

Straight curb 20/00 - 20 cm high for skylight / flat roof window 800 x 1400 / Daylight size = roof opening

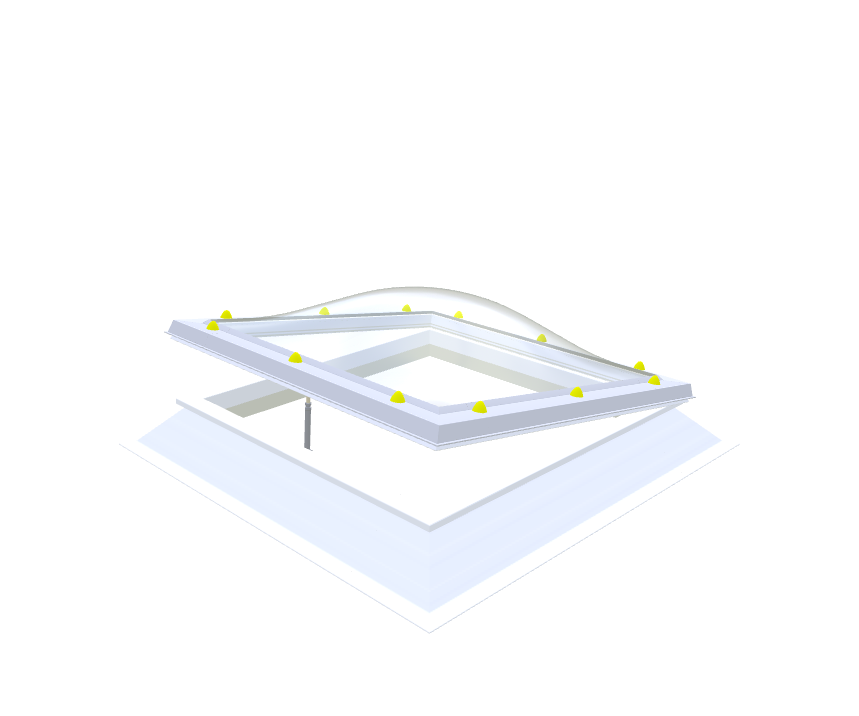

Splayed curb 16/20 - 16 cm high for skylight / flat roof window 800 x 1400 - Please note! Roof opening = 1000 x 1600
Straight curb 16/00 - 16 cm high for skylight / flat roof window 800 x 1400 / Daylight size = roof opening
Straight curb 20/00 (20 cm high - Stackable & suitable for iWindow & iDome)

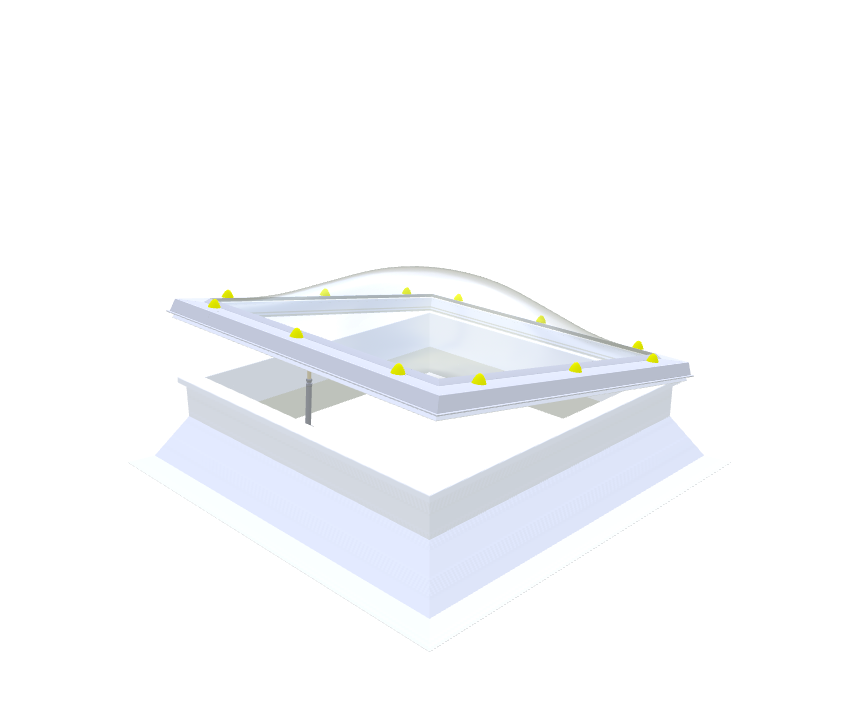

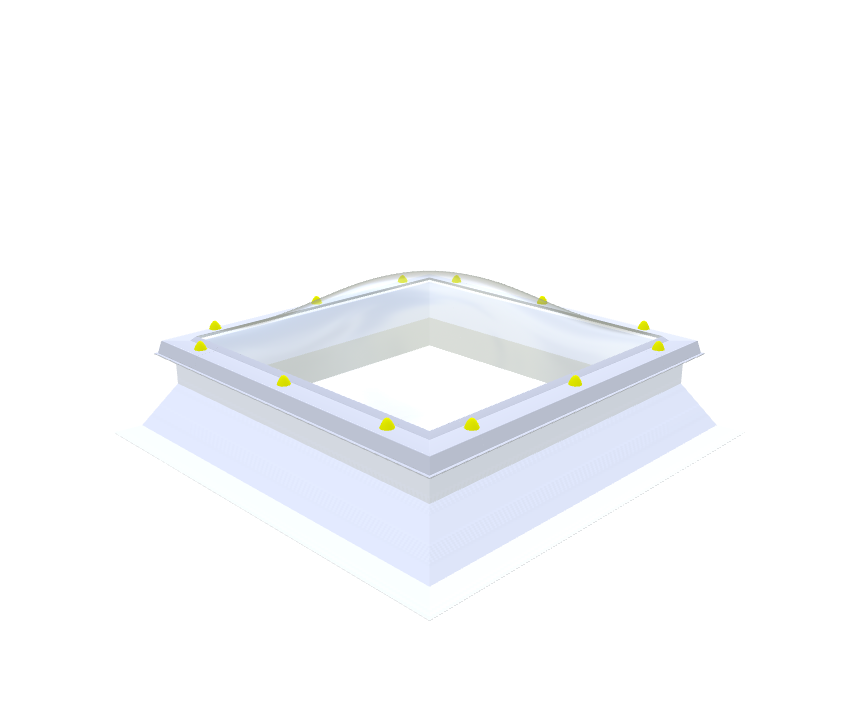

Splayed curb 30/20 - 30 cm high for skylight / flat roof window 800 x 1400 - Please note! Roof opening = 1000 x 1600

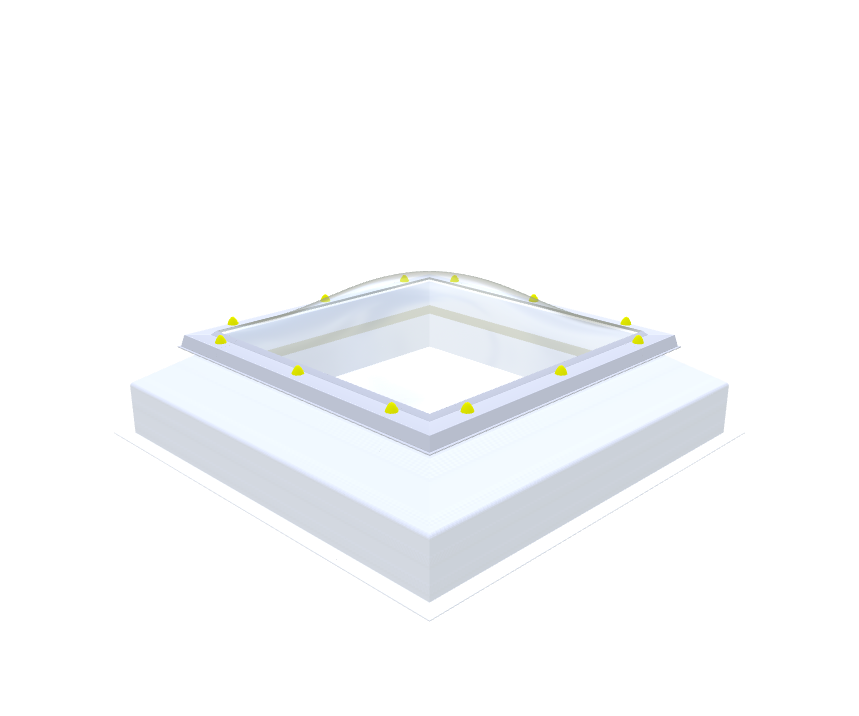

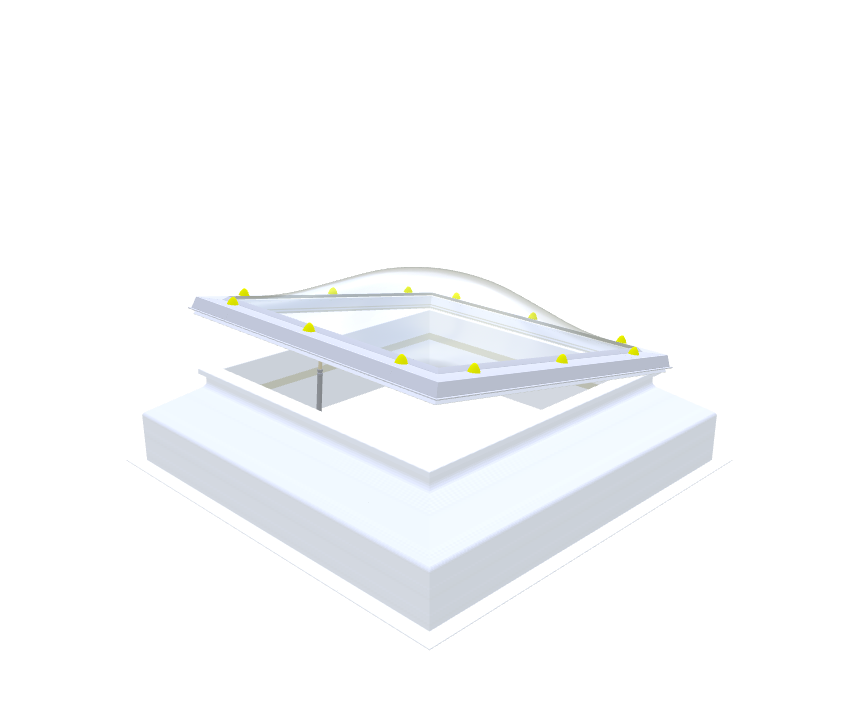

Splayed curb 35/30 - 35 cm high for skylight / flat roof window 800 x 1400 - Please note! Roof opening = 1100 x 1700

Opening system: Not openable

Not openable
Single electric spindle 230 V
Single electric chain actuator
Manual chain spindle
Single manual spindle with eye
Single manual spindle with tube
€584,45
Vendor: 13.37 kg
Type: PVC Curb
SKU: 104830
Barcode: 5401129048303

Frequently Bought Together

Total price:€971,65
  • This item: PVC curb 800 x 1400 €584,45
  • Skylux skylight 80x140 cm €387,20
Beschrijving
Skylight curb type U-value (insulation value)
PVC 16/20 EP 0.89 W/m²K
PVC 16/00 1.00 W/m²K

PVC 20/00 EP & 20/00 EP-S

0.61 W/m²K
PVC 30/20 1.00 W/m²K
PVC 35/30 0.86 W/m²K

Discover the Skylux PVC curb 800 x 1400, the perfect choice for mounting skylights and flat roof windows on your roof. Playing an essential role in ensuring good drainage and water retention, these curbs prevent water from remaining on the roof.

Forget wooden curbs because PVC curbs are the better option. They prevent expansion problems and the associated fractures and cracks that can occur. Our PVC curbs offer easy installation and maintenance. They are compatible with all types of roof membranes and can be installed without any problems.

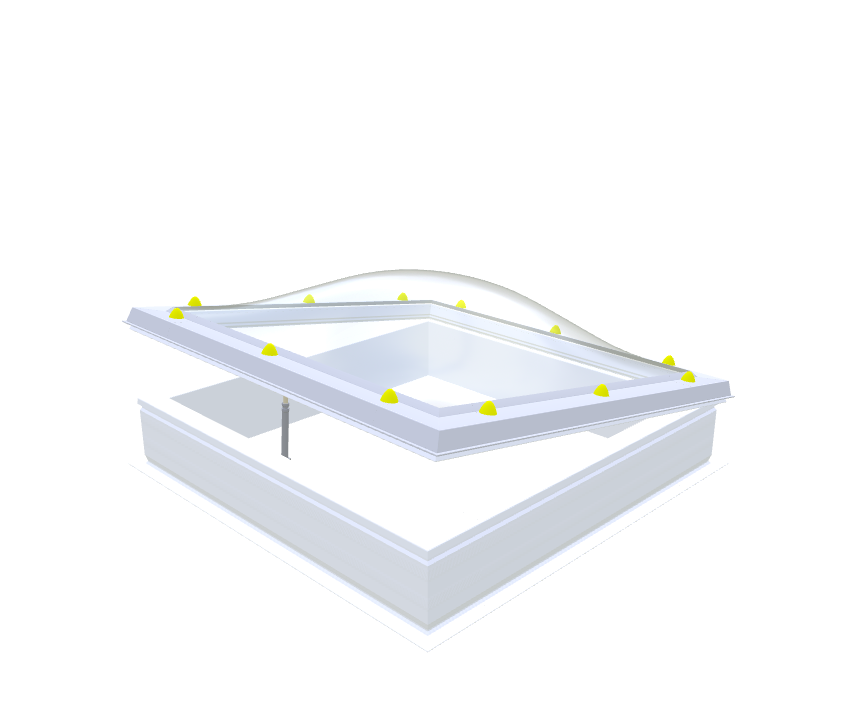

Choose from different versions of the PVC curb 800 x 1400 suitable for fixed or openable plastic skylights, hybrid systems and flat roof windows. Our curbs can be equipped with electrically or manually operated opening systems for fresh air ventilation. They also serve as ideal solutions for smoke extraction systems, with electrical control options. Our opening PVC curbs are equipped with hinges and a standard PVC frame, on which the skylight is mounted.

When making the right choice for a skylight curb, it is important to pay attention to the roof opening and the desired insulation value. In our Skylux range we offer two types of curbs: straight and splayed curbs. A straight curb can be installed over an existing curb to improve insulation value, making it a popular choice for refurbishment projects. On the other hand, a splayed curb provides a more even distribution of light thanks to the oblique incidence of light. In addition, the skylight placed on this curb is also more cost-effective because it is smaller.



Overige Documenten
Retour & Classificatie
Classificatie: C05P

Let op: Producten met de classificaties C05, C05P, C10, C10P, C15, C20, C25, C30, C40, C50, D en E (zoals hierboven vermeld) worden beschouwd als op maat gemaakte en gepersonaliseerde producten en worden niet geaccepteerd voor retournering. Enkel producten met classificatie A & B kunnen worden geretourneerd. Zorg ervoor dat je goed geïnformeerd bent alvorens te bestellen en aarzel niet om contact met ons op te nemen bij twijfel. We helpen je graag om de perfecte oplossing te bepalen voor jouw (ver)bouwproject.
